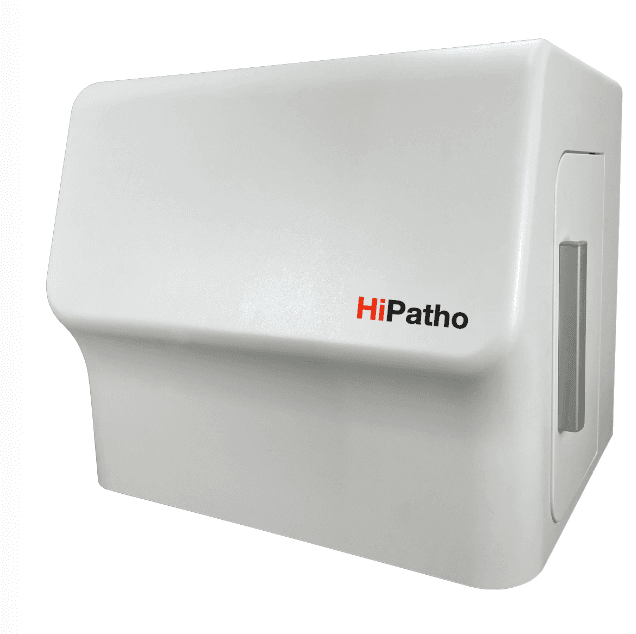

HPS-60FN
High-speed 60-slide brightfield & fluorescence scanner
The HPS-60FN is a fully automated high-speed slide scanner that digitizes up to 60 slides in a single batch across both brightfield and fluorescence, with exceptional image quality. Dynamic fluorescence switching moves between five channels (up to seven) without mechanical parts, accurately identifies transparent samples, and prevents photobleaching. Integrated brightfield and fluorescence light sources enable precise imaging for FISH, immunofluorescence, and routine H&E. With seamless stitching and Z-stacking it captures high-resolution images across focal planes, and its HDScanner software makes high-quality virtual slides easy to access and share for cytology, histology, and molecular pathology.
Imaging Gallery

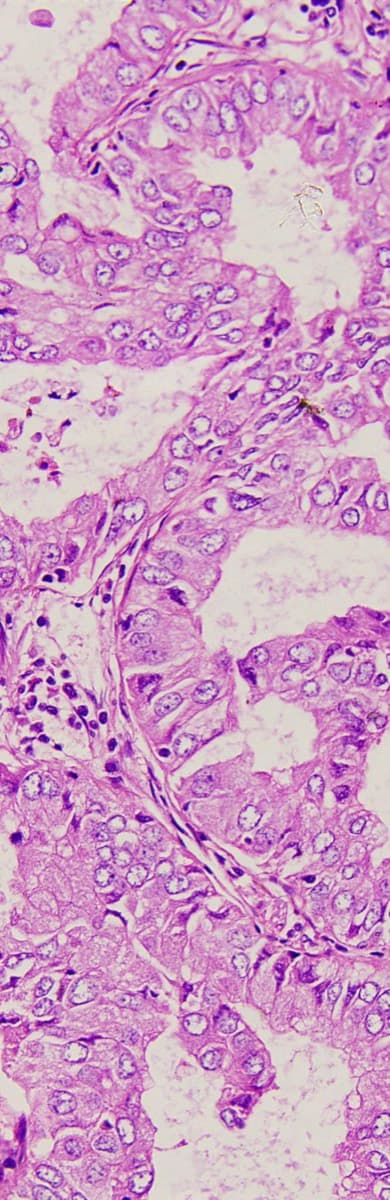

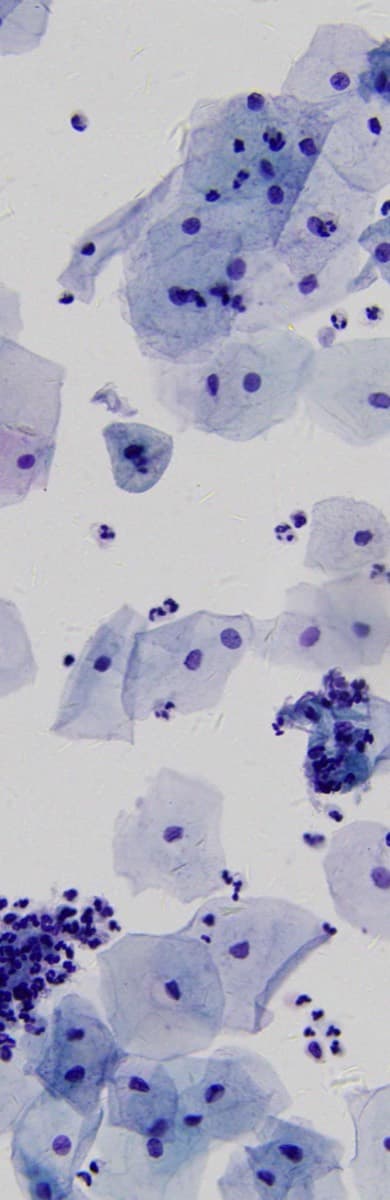

Sample whole-slide captures spanning brightfield and fluorescence, acquired on the HPS-60FN.
Features

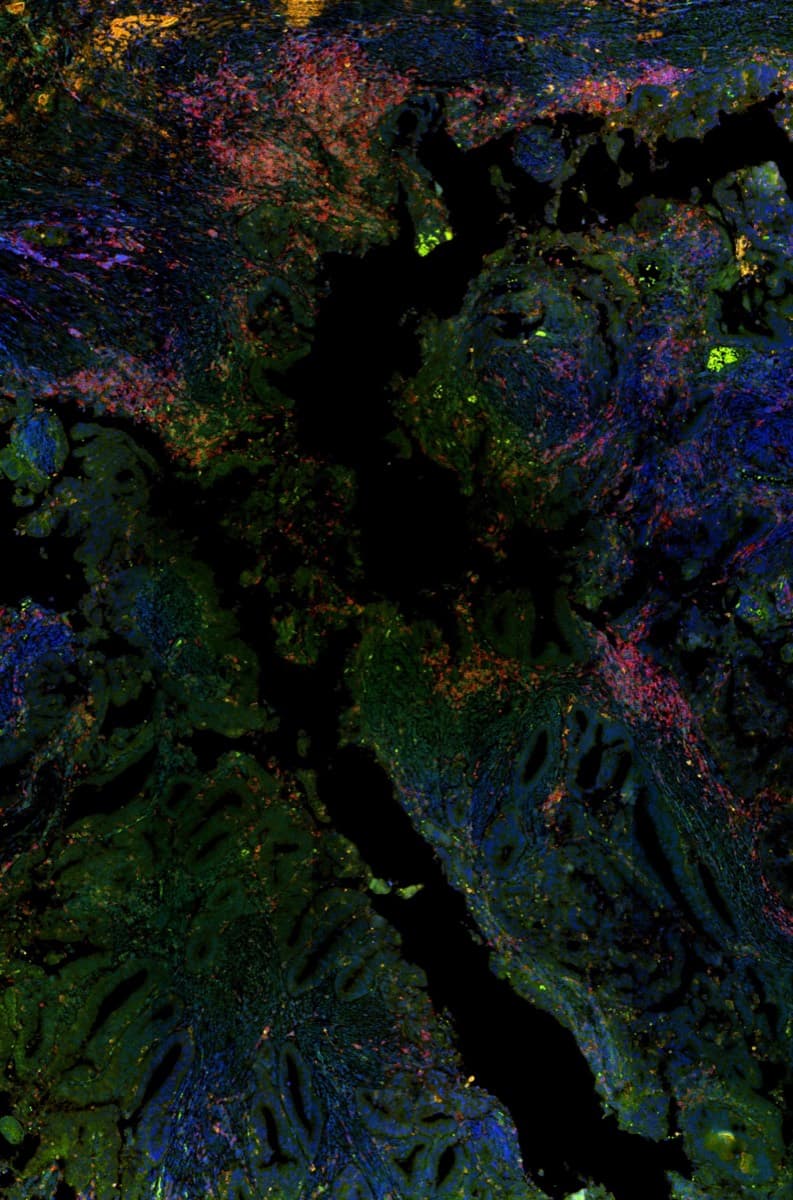

Five-Channel Fluorescence
Dynamic fluorescence switching moves between five channels — expandable to seven — with no mechanical parts, keeping multi-color acquisition fast and perfectly aligned.
Brightfield & Fluorescence in One
Integrated brightfield and fluorescence light sources deliver precise imaging for FISH, immunofluorescence, and routine H&E on a single instrument.
Gentle Strobe Illumination
Brightfield/fluorescence strobe technology minimizes light exposure to prevent quenching and protect live cells, extending safe observation time.
Real-Time Autofocus & Z-Stacking

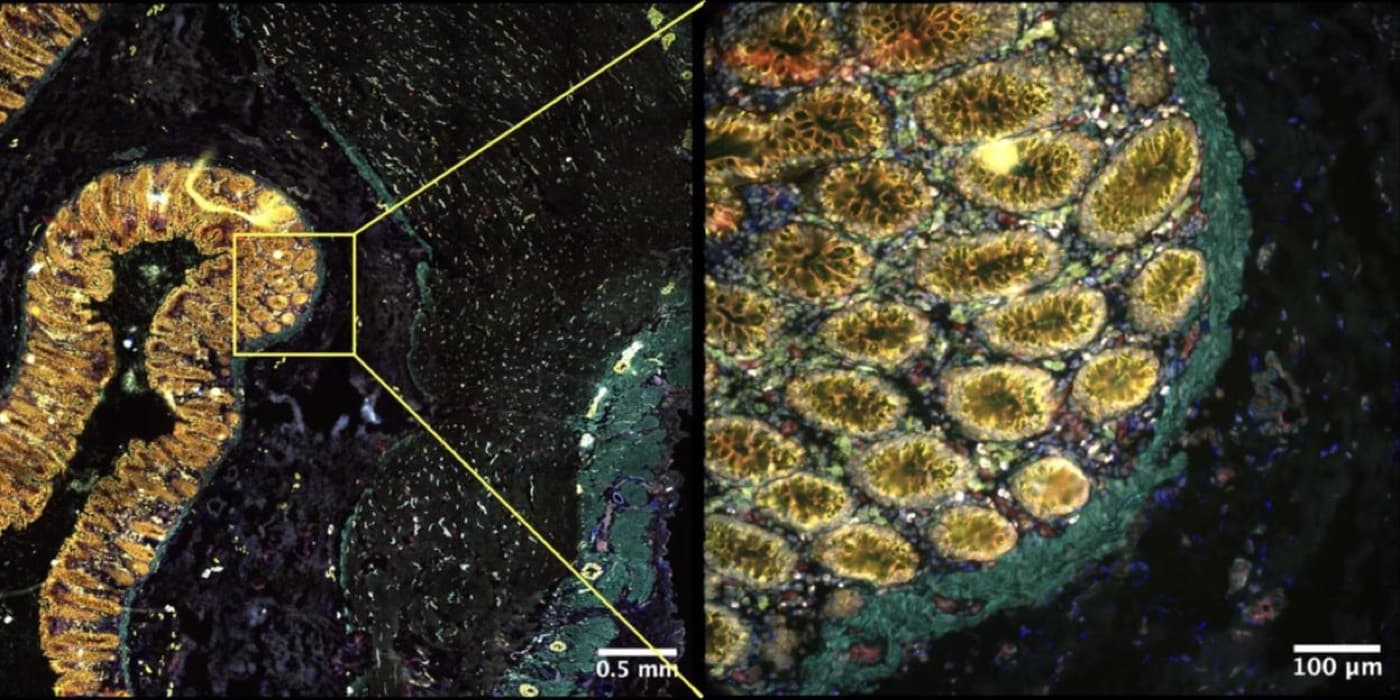

Real-time autofocus with seamless stitching and Z-stacking captures crisp, high-resolution images across multiple focal planes.
High-Throughput Automation
60-slide batches with barcode recognition, fluorescence preview for transparent samples, and priority scanning for urgent cases keep the workflow uninterrupted.
AI Quantification & Analysis
AI-assisted image analysis precisely measures marker expression and captures cell-to-cell heterogeneity for reproducible quantitative results.
